Description
Enclosure: | |

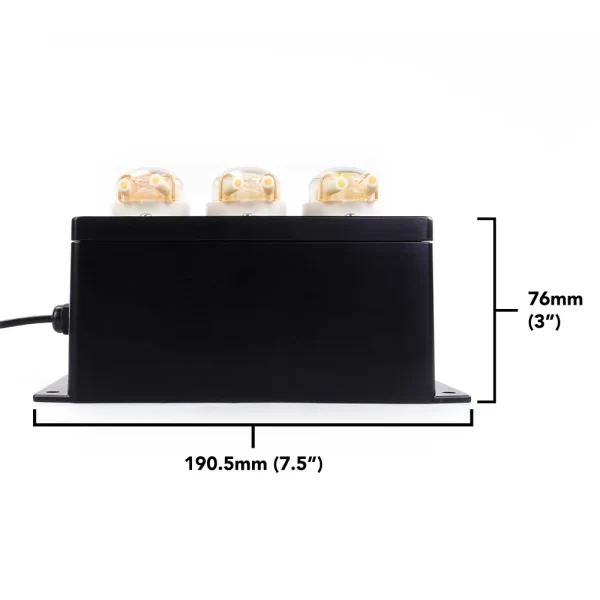

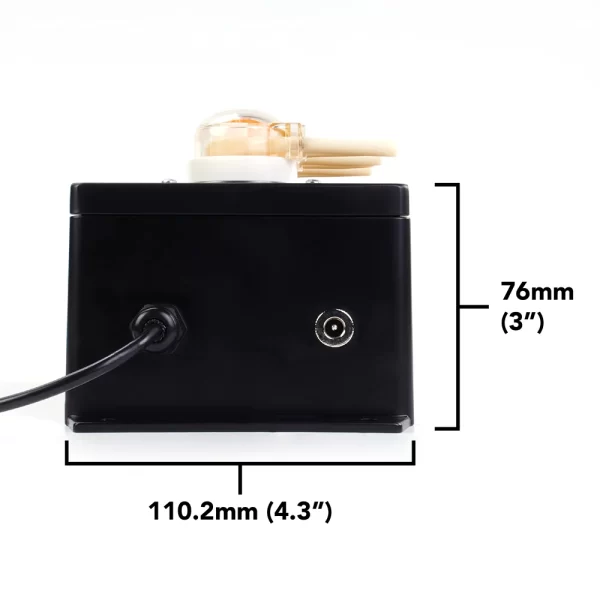

Size | Metric: L = 190.5mm x W = 110.2mm x H = 76mm |
Inch: L = 7.5″ x W = 4.3″ x H = 3″ | |
Enclosure protection | IP-64 |
Enclosure material | Body: Black powder-coated aluminum |
Screws: Stainless steel | |
Pump: | |
Flow rate | 0.5ml to 105ml/mins (per pump) |
Accuracy | +/- 1% |
Modes of operation | Continuous dispensing (per pump) Volume dispensing (per pump) Dose over time mode (per pump) Constant flow rate (per pump) Dispense at startup (per pump) |
Connector | 5 lead data cable |
Calibration | Single point |
Supplied tubing | 15.24 cm |
Tubing size | Any 5mm O.D. tubing |
Data protocol | I2C |
Default I2C address | 56 (0x38) 57 (0x39) 58 (0x3A) |
Operating voltage | 3.3V – 5V (logic) |
12V – 24V (motor) | |
Pump head | 8.1 meters (26.5’) |
Data format | ASCII |
Food safe | Yes |
